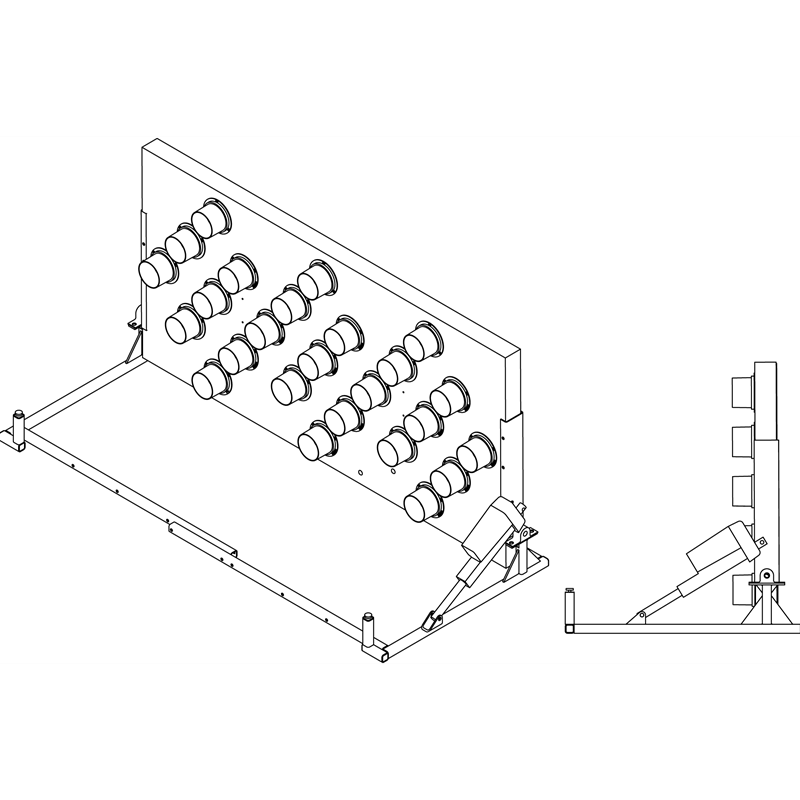

Mounting - Low Profile Bottom Hinge Power Lift Kits [Price for 1]

Features:

• Design: bottom hinge
• No need to worry about collecting water – actuator is inverted
• Unit made up of 1.25" square tubing
• Actuator will stop automatically when it is in stored or operating position
• Warranty: 1 year long
• Included is the actuator assembly and the base frame
• For roof mount applications, we suggest this unit

Model that fits 24" x 48" and 30" x 60" Arrow Boards has an operating height of 29.25" - 32.125" and riding height of 11"

Model that fits 36" x 72" Arrow Boards has an operating height of 37.875" and riding height of 11"

Mounting: About half of our customers fabricate their own mounting apparatus to fit the vehicle they are attaching it to. The other half buy kits for mounting. There is a lot of mounting customizations due to the shapes of the specialty vehicles these are commonly secured to. We would be happy to quote you a mounting kit, but please realize most vehicles will require some amount of modification to the mounting kit in order to be secured.
