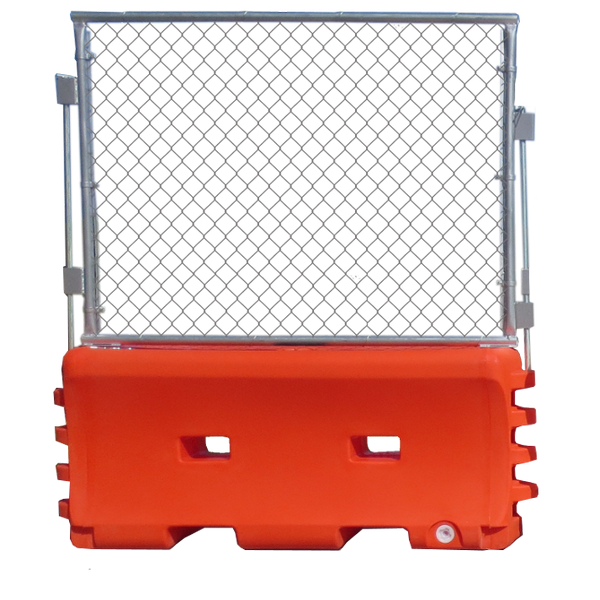

32 x 72 Water Wall w/ Fence [Price for 4]

Color
Fence System
American Louver
TBARWWALLFENCE
Regular Price: $2,435.80
On Sale For: $2,355.80 ($588.95 / each)
Description

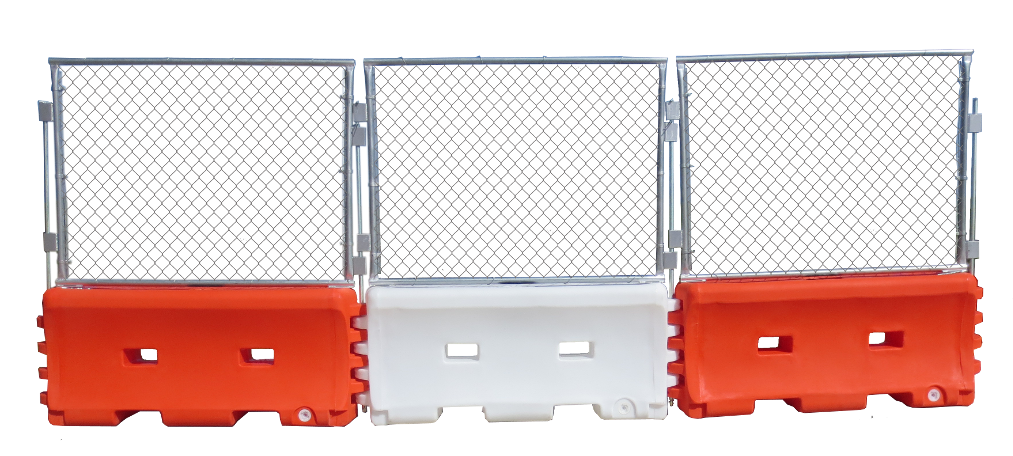

32 x 72 Water-Wall Barrier Barrier w/ Fence Included

Click Here To Download Fence Spec Sheet

Click Here To Download Barrier Spec Sheet

(See Fence Specifications at the Bottom)

  • Units Stocked in Iowa & California
  • Call or Email for Spec Sheets or a Quote
  • Fence Posts Lock Barriers Together & Secure Fence
  • Availability Changes Day To Day Call or Email For More Info

The Water-Wall Barrier is a durable side protective temporary crash barrier system that can be used in many situations; from protecting the public surrounding a construction site, to work-zone safety on roads and highways. The Water-Wall can quickly and easily connect directly to the SLED end treatemnt which negates the need to shield or flare the end of the barrier. The Water-Wall Barrier is an economic and easy to install crash barrier system.

For added privacy and security, the Water-Wall can be equipped with a plastic or chain-link fence (with extended connection pins).

  • Durable polyethylene plastic minimizes cracking and breaking
  • Molded through holes eliminate bowing when filled with water
  • Double wall knuckle design minimizes breakage at hinge points
  • Hinge design allows for a 30° pivot between sections
  • Large 8" fill hole speeds filling process, includes twist-lock plastic cap
  • New tamper resistant, corner offset drain plug with coarse buttress thread - screws in or out in only 2 ½ turns
  • Includes one steel connection pin that allows sections to be locked together
  • Forklift/Pallet Jack slots at bottom allow for easy movement and transport
  • Standard colors are orange/red or white - additional colors available upon request (typically bulk quantities needed for custom colors)

Units approved for NCHRP-350 TL-1 as a Barrier, TL-2 as a Longitudinal Barricade and TL-3 as a Barricade. Ask for the approval letters

Specifications: Empty 80 lbs. (36.29 kg) Filled 1,110 lbs (503.49 kg). Size is 32" Tall, 72" Long and 18" Deep. Barriers are made of linear, low density polyethylene.

Specs on Fence System

The chain link fence will attach to the top of a longitudinal barrier, like the TrafFix Water-Wall, creating additional security for a work zone. The mesh fence will be made of 11 gauge steel, connected to vertical steel posts of 1 ⅝" diameter. Fence sections will be 6' wide × 4' tall. Each fence section shall weigh no more than 42 lbs including the connector T-pin. Each T-pin will extend down through the sections of fence into the knuckles of the TrafFix Water-Wall to securely connect the fence to the wall. Each T-pin shall have a hole at the upper end for a bolt to enhance security. The fence will accommodate a 6' single gate or a 12' double gate for entrance and exit from the work zone. For maximum stability, the TrafFix Water-Wall, filled with water will weigh 1,110 pounds. Overall height of the Water-Wall Fence attached to the top of the TrafFix Water-Wall will be a minimum of 84".
